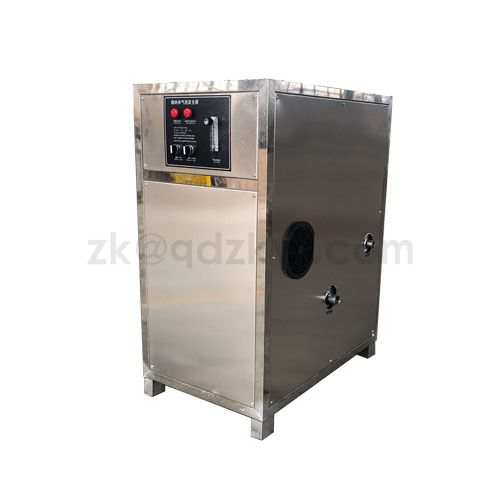

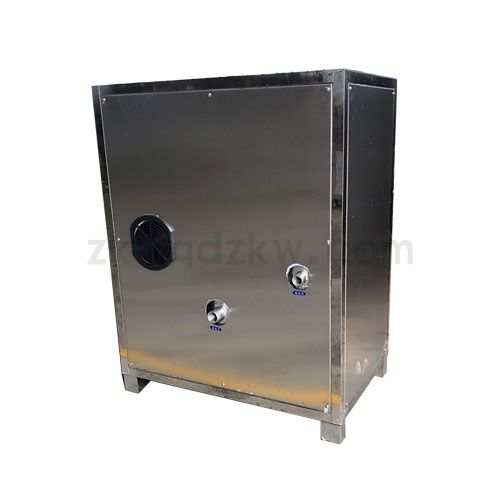

OZ-NM-20 cubic Micro-nano bubble generator

　　Micro-bubbles existing in liquid are called micro-bubbles when the diameter of the bubbles is 100 μm or less, and nano-bubbles with a diameter of 100 nm or less. Micro-nano bubbles refer to bubbles with diameters ranging from tens of microns to hundreds of nanometers when they occur. These bubbles are between micro-bubbles and nano-bubbles and have physical and chemical properties that conventional bubbles do not have.

　　The micro-nano bubble generator is mainly composed of two parts: the generating equipment and the releasing equipment, in which the supporting pipelines need to be connected, mainly including the air inlet pipeline, the water inlet pipeline, the water outlet pipeline, and the release equipment. When the gas enters the generating equipment through the intake pipeline, it is fully mixed with the raw water, and then processed by equipment stirring and mixing to generate micro-nano bubbles with a diameter of less than 50 μm, which are then released in the form of aeration through the release equipment.

        Product Features：

　　*Using high-pressure rotary flow transient release technology,high density of micro nano bubble,non-clogging,easy to maintain.

　　*Functional bubble diameter of 200 nm ~ 50μm , saturated water can be quickly produced with good gas-liquid dissolving effect.

　　*Stable performance, high efficiency, low noise.

　　*Wide range of application

        such as : waste water /gas treatment aquaculture,agricultural irrigation,bath and so on.

　　The bubble which is 0.001 mm to 0.05 mm in size is defined as micro-nano-bubble (ultrafine bubble)

　　With this, Micro Bubbles can be widely adapted to different industries by integrating Micro Bubbles with various gases.

　　Air + Water: (1) decreasing COD and SS for waste water processing (2) generating anions for bathing system (3) increasing oxygen levels in the water for hydroponics and fishery

　　Ozone + Water: (1) rinsing food to kill bacteria and remove pesticides (2) cleaning panels and wafers of semi-conductors

　　CO2 + Water: (1) seaweed raising (2) Nano CaCO3 coating (3) carbon capture and storage applications.

　　H2 + Water: Creates negative ORP (Oxidation-Reduction Potential), negative hydrogen water.

　　Technical Parameters

If you want to know more about the ozone generator, please feel free to send us an email.
