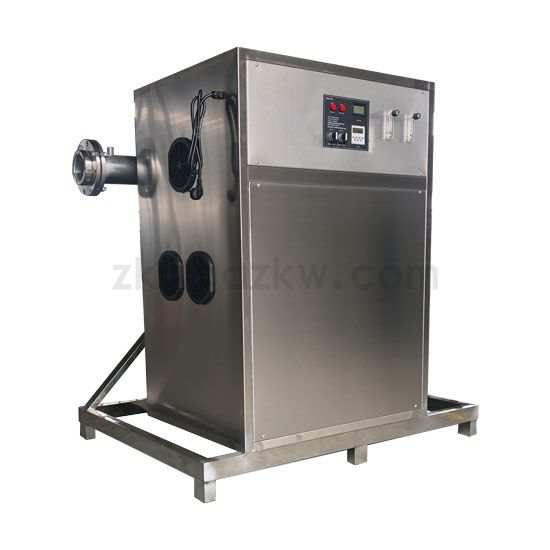

100g/h Air source water cooled ozone generator

　　Since 2010 our company has built tens of thousands of our Ozonnier ozone generators right here in China. Unlike ordinary ozone generators our machines produce extremely high levels of ozone FAST to blast odors, mold, and toxins permanently at their source. And unlike almost all other ozone machines being sold online, we do NOT use cheap mass-produced components, unnecessary parts, or gimmicky features. Call us today for friendly expert advice.

　　All our ozone generators are highly efficient and can be used in a wide range of applications – from small scale use to large scale, such as in water treatment, air purification, food processing, medical treatment, medicine, aquaculture ,wastewater treatment plants ,and other fields.

　　Why buy here? Our machines come with the industry's highest-rated severe application transformer, our own unique 100% pure dielectric plate pack,  fast response time, real world expertise, friendly support, easy maintenance, full service department, and a lifetime trade-in credit for when you are ready to upgrade your machine. There is no better company to work with than who invented the ozone blaster . Satisfaction Guaranteed.

　　Working principle of ozone generator：

　　Ozone generator is a process that uses the principle of high voltage discharge to convert oxygen into ozone. The high voltage alternating current is applied to the high voltage electrode with a certain gap and an insulator in the middle, so that the dried purified air or oxygen can pass through. When the high voltage AC reaches 10-15kV, a blue glow discharge [corona] is generated, and the free high-energy ions in the corona dissociate O2 molecules and polymerize into O3 molecules by collision. The output and concentration of ozone vary with the added supply voltage, current, etc.

　　Ozone generator is used to produce ozone gas (O3) device. Ozone is easy to decompose can not be stored, need to make on-site use of the site (special circumstances can be short time storage), so all can be used to ozone places need to use ozone generator. Ozone generator is widely used in drinking water, sewage, industrial oxidation, food processing and preservation, pharmaceutical synthesis, space sterilization and other fields. The ozone gas produced by the ozone generator can be used directly, or it can be mixed with the liquid through the mixing device to participate in the reaction.

　　Ozone application field：

　　At present, ozone has been widely used in water treatment, air purification, food processing, medical treatment, medicine, aquaculture and other fields

　　The product Features:

　　Specially designed for space disinfection and water treatment disinfection, the shell is made of 304 stainless steel laser welding, the microcomputer is automatically timed, and the automatic startup time and shutdown time can be set, and 10 time periods can be set every day to realize unmanned operation management. The core components are made of high temperature resistant high boron silicon tube, the discharge unit is made of 316 stainless steel, and the core high voltage circuit is made of moisture-proof, short-circuit proof, breakdown proof, high temperature alarm, overcurrent alarm, etc.

　　1. The shell is made of SUS stainless steel wire drawing material, with a thickness of 1.0mm

　　2. Adopt high-frequency ozone power supply, soft switch design, automatic tracking of resonant frequency,

　　3. The power supply is designed with overcurrent, overheating, buffer current and other protection functions

　　4. The sixth-generation high borosilicate ozone tube is used, which has impact resistance and mechanical force resistance, far exceeding the material of the third-generation ceramic tube and the fourth-generation enamel tube.

　　5. Using air as the gas source, the ozone concentration reaches 20mg-30mg/L

　　6. The electrode adopts air cooling and water cooling design.

　　7. The concentration can be adjusted by 10-100%

　　8. Device microcomputer timing function

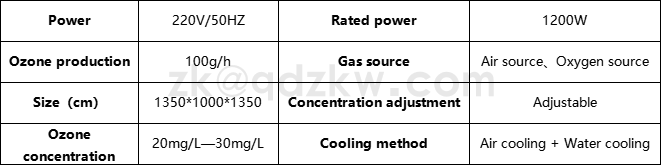

　　The product Technical Parameters:

　　Find more information and datasheets for each one of our ozone generator series below:

　　If you want to know more about the ozone generator, please feel free to send us an email.
